My wife makes teddy bears with jointed limbs. They go together with cotter pins and fiber discs, like this:
One disc is in the limb and the other is in the body; the cotter pin keeps pressure between them to provide friction for the joint. She curls up the ends of the pin, as shown, with a needle nose pliers, twisting until she gets the correct tension. She uses fairly firm pins so that the joints don’t loosen with time.
The problem is that this is really hard on pliers. It takes a fair amount of force to curl those pins, and needle nose plier jaws are not designed to be torqued that way. She’s already broken two pairs of Husky needle nose pliers doing this. I bought her a Greenlee plier, which is holding up better, but it’s still difficult for her.
I’m considering getting her a small pair of long nose locking pliers for this:
The nose is still too blunt, though; not pointy enough to make the tight curl required. So I would have to grind it down a bit, and I’m not sure it would hold up.
The obvious solution is to not use cotter pins. Screws and nylon-insert locknuts do work, but they’re cost-prohibitive; the margins on the bears are already slim.
So, throwing it open. Any suggestions, guys? Different tool, different hardware?
dwasifar wrote:
18 minutes ago, dwasifar said:My wife makes teddy bears with jointed limbs. They go together with cotter pins and fiber discs, like this:
One disc is in the limb and the other is in the body; the cotter pin keeps pressure between them to provide friction for the joint. She curls up the ends of the pin, as shown, with a needle nose pliers, twisting until she gets the correct tension. She uses fairly firm pins so that the joints don’t loosen with time.
The problem is that this is really hard on pliers. It takes a fair amount of force to curl those pins, and needle nose plier jaws are not designed to be torqued that way. She’s already broken two pairs of Husky needle nose pliers doing this. I bought her a Greenlee plier, which is holding up better, but it’s still difficult for her.
I’m considering getting her a small pair of long nose locking pliers for this:
The nose is still too blunt, though; not pointy enough to make the tight curl required. So I would have to grind it down a bit, and I’m not sure it would hold up.
The obvious solution is to not use cotter pins. Screws and nylon-insert locknuts do work, but they’re cost-prohibitive; the margins on the bears are already slim.
So, throwing it open. Any suggestions, guys? Different tool, different hardware?
How tight is the curve ? Do you mean one cotter pin for all or two
CATERPILLAR wrote:
4 minutes ago, CATERPILLAR said:How tight is the curve ? Do you mean one cotter pin for all or two
I’m not sure I understand the second part of your question, but as for the first part, it’s just like you see in the first photo. The curls are made by gripping the cotter pin with the very tips of the needle nose, so they’re pretty tight. The fiber discs in the picture are maybe half-dollar sized, which should give you an idea of the scale.
Have you thought about using rivets? Place a steel washer on the outsides and use a nylon washer in the center as a buffer. You could then experiment with rivet types to get the tension you need.
JMG wrote:
1 minute ago, JMG said:Have you thought about using rivets? Place a steel washer on the outsides and use a nylon washer in the center as a buffer. You could then experiment with rivet types to get the tension you need.
Pop rivets? That’s actually a pretty good idea. She already uses steel washers over the fiber ones. (Didn’t mention that before because I didn’t want to add confusion.)
Rivets seems like a good idea
[External image (images-na.ssl-images-amazon.com), not copied]

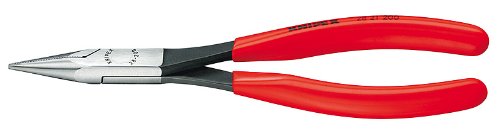

Link to Amazon: https://www.amazon.com/Knipex-2821200-Round-Assembly-Pliers/dp/B003RWS99M/
