Introduction
I've used a lot of lasers over the years and when it comes to line lasers, Bosch and Hilti are the two names that always come up. Both make great tools and both have a strong reputation in this category. Hilti brought me in on this one as a sponsor, and with a tool this good, I had no problem saying yes. But after spending time with the Hilti PM 50MG-22, I have to be straight with you, this is the best 3 line laser I've tested. It's not even close. The whole package, the bag, the tripod, the battery, it all comes together in a way that feels premium from the moment you open it up. If you do any kind of layout work, this laser is going to change how you approach it.
Kit Purchase Options
Hilti offers the PM 50MG-22 in two kit options:
#2390115 for $539
- 1x PM 50MG-22 VN Multi line laser
- 1x PM 50MG-22 & PM 50-22 Auto Pouch
- Battery not included
#5009574 for $719
- 1x PM 50MG-22 VN Multi line laser
- 1x PM 50MG-22 & PM 50-22 Auto Pouch
- 1x C 4-22 02 110-127V Battery charger
- 1x PMA100 Wall mount with magnetic bracket
- 1x B 22-55 Li-ion Battery pack
First Impressions and Build Quality

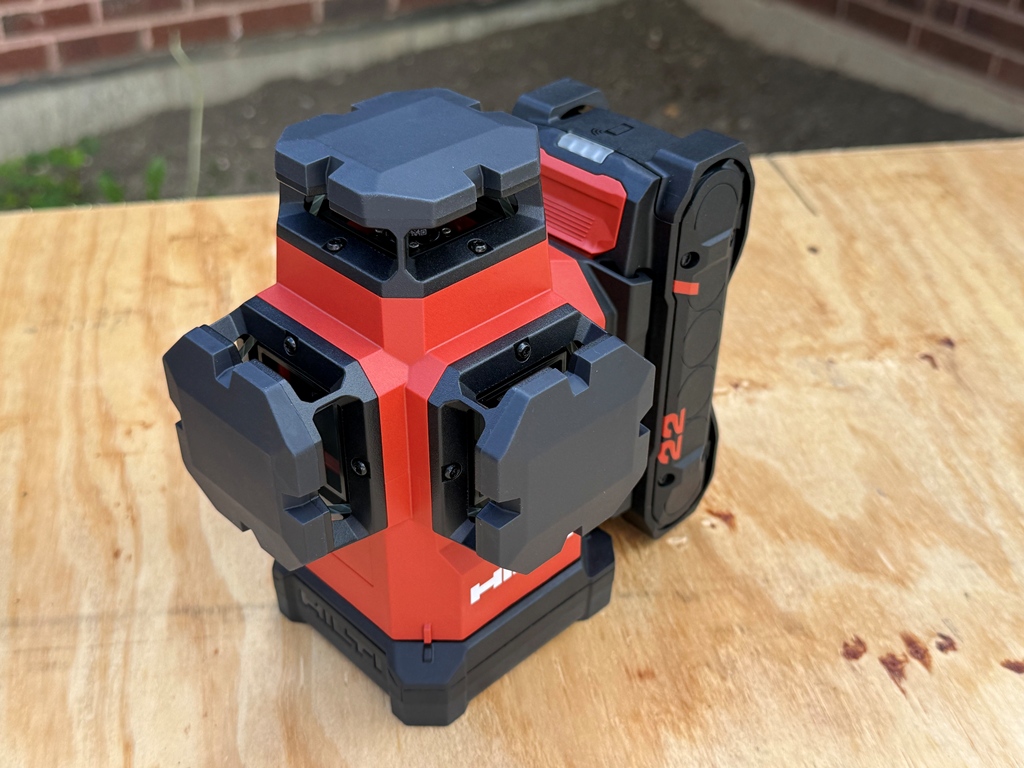

The first thing you notice when you pick up the PM 50MG-22 is how solid it feels. It's not heavy in a bad way, it just has that density that tells you it's built to last. The housing has rubber dampers built in for drop resistance and it's rated IP54 for temperature and humidity protection, so it's not going to fall apart on you when conditions get rough. Hilti designed this to live on job sites, not sit on a shelf, and you can feel that in how it's put together.

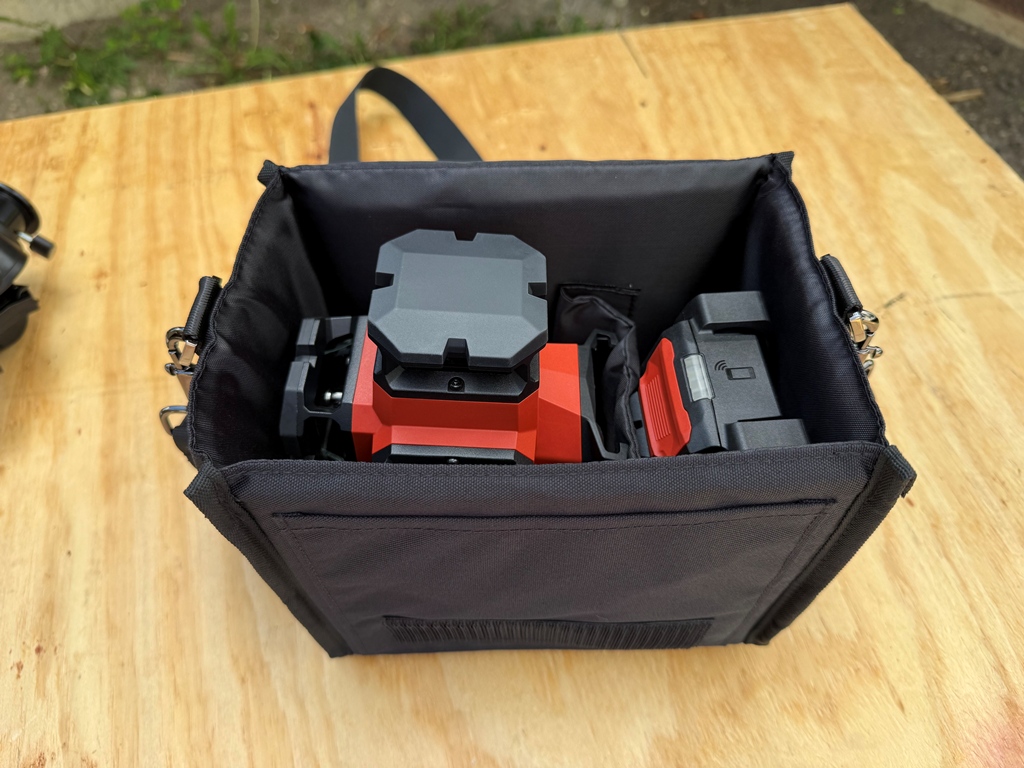

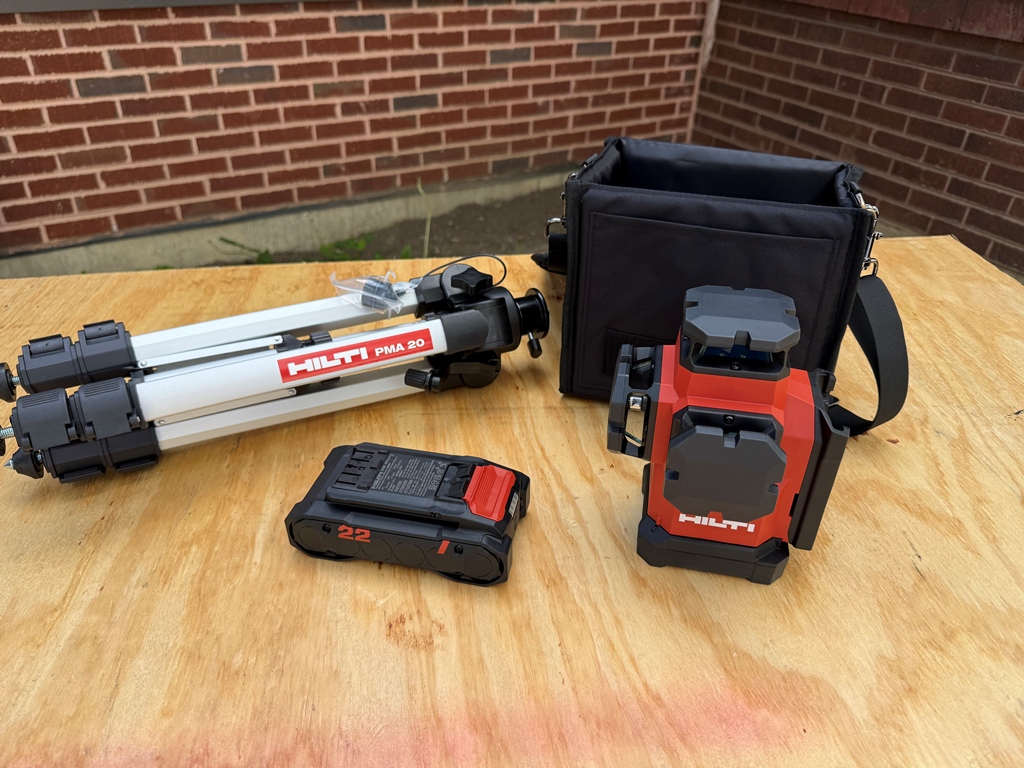

The case it comes in is well thought out too. Everything has a spot, the laser, the battery, the accessories, and it all fits together cleanly. When a manufacturer puts that much thought into the case, it's usually a good sign of how much thought went into the tool itself.
The Green Lines

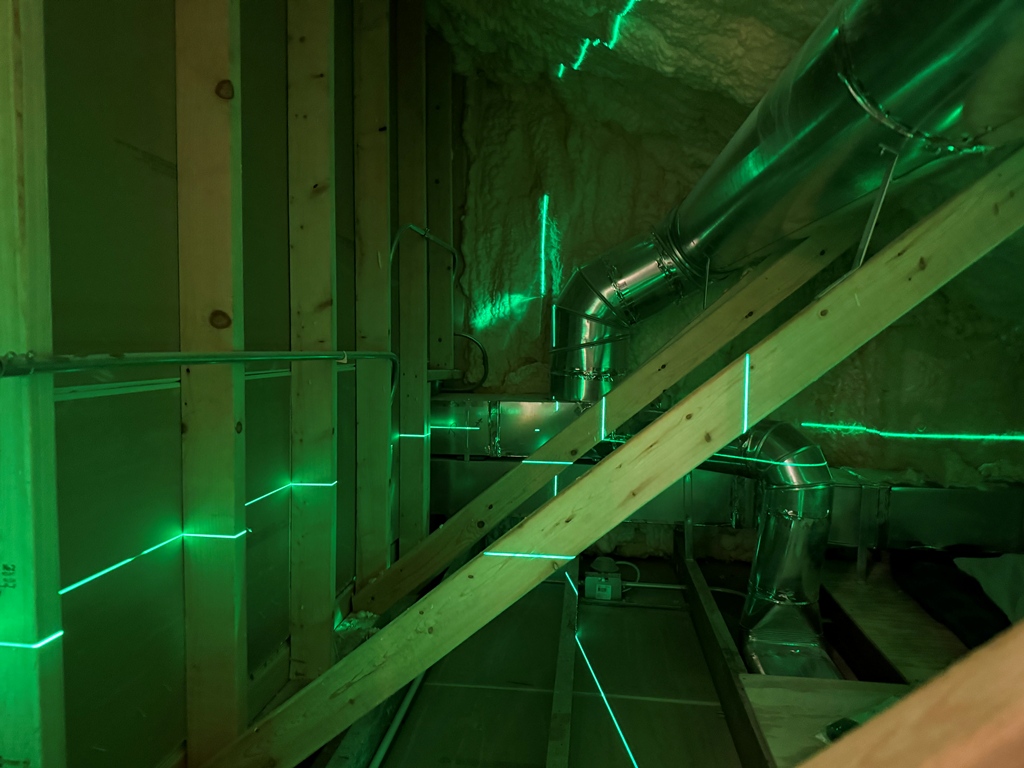

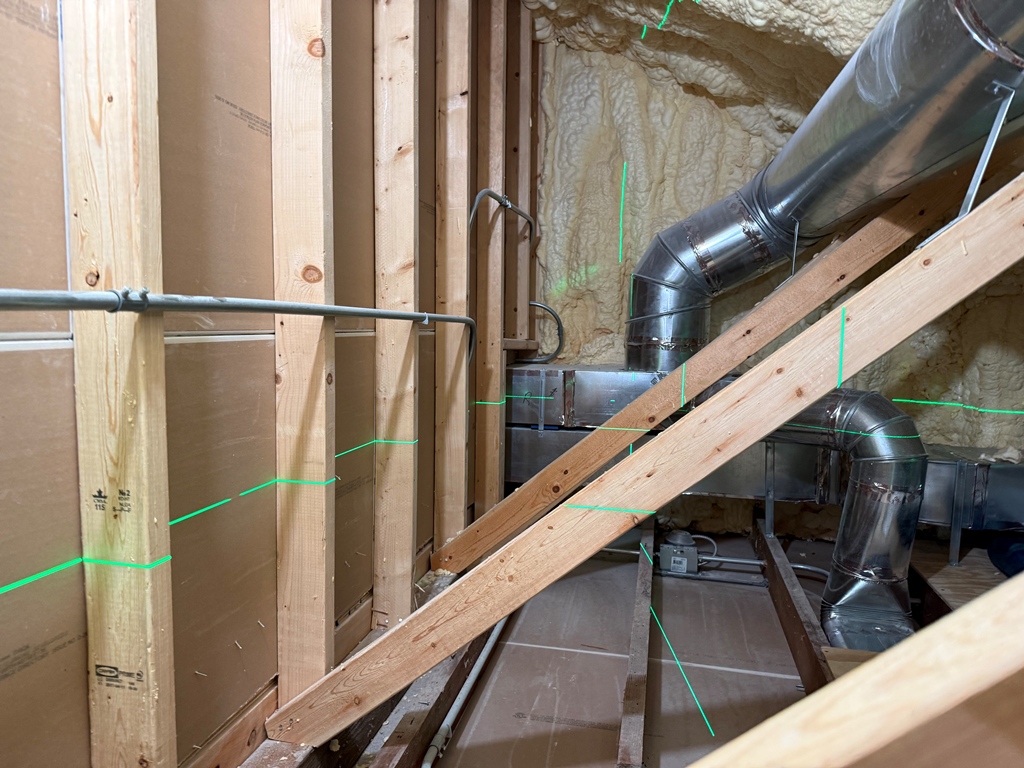

This is where the PM 50MG-22 separates itself from the competition. The green laser lines on this thing are bright, sharp and easy to read even in challenging lighting conditions. Hilti uses what they call Pulse Power technology, which works at up to a million impulses per second for highly reliable readings even in difficult conditions. I took it up into an attic to show you what it looks like in a real working environment. With the lights on you can still read the lines clearly without squinting or second guessing yourself. Turn the lights off and those three green 360 degree lines just pop. There's no hunting for the line, no wondering if you're reading it right. It's just there, clean and bright, exactly how it should be.
The operating range on the lines goes out to 262 feet, and if you add a receiver you can push that out to 427 feet. For most interior applications you're never going to need that kind of range, but it's good to know the tool isn't the limiting factor.
Self Leveling and Accuracy
The PM 50MG-22 self levels in 3 seconds. That is fast. You set it down, it finds level, and you're working. No waiting around, no fussing with it. The accuracy is plus or minus 0.12 inches at 33 feet, which is as tight as you're going to find in this class of laser. The self leveling range is plus or minus 4.25 degrees, so as long as you're setting it up on a reasonably flat surface it's going to find level on its own without you having to manually adjust anything. For layout work where precision matters, those numbers are exactly what you want to see.
Powered by Nuron

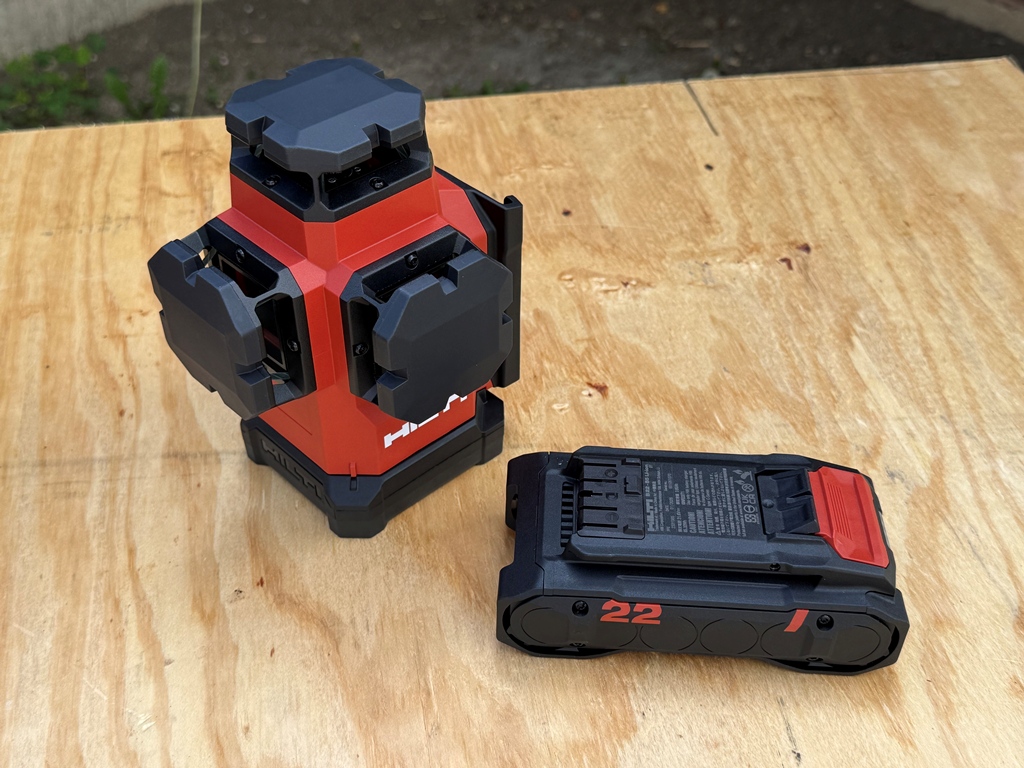

The PM 50MG-22 runs on Hilti's Nuron 22V battery platform, and the runtime on this tool is genuinely impressive. With a B22-55 battery you're getting 15 hours of continuous use. Step up to a B22-85 and that goes to 24 hours. For a laser that's running all day on a job site, that kind of battery life means you're not thinking about charging. You turn it on in the morning and it's still going when you wrap up.
The Controls

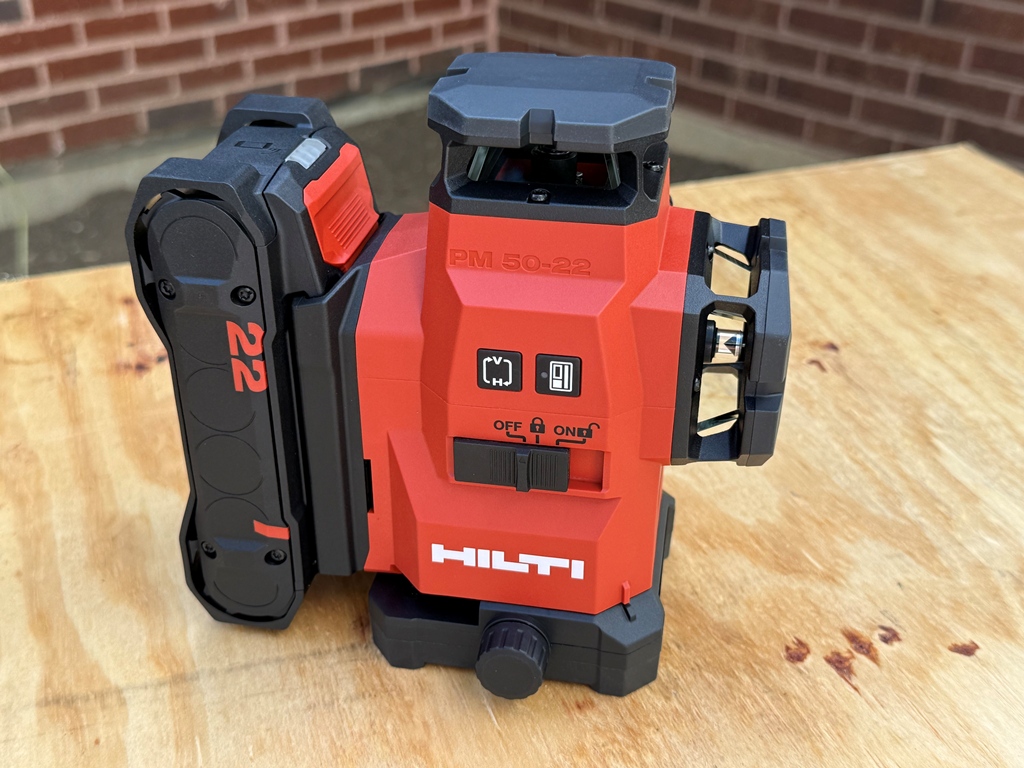

The controls on the side of the PM 50MG-22 are straightforward and easy to use. Power, leveling mode, line selection, it's all right there and intuitive. You're not digging through a manual to figure out how to turn on a specific line or switch between modes. Hilti also built in smart Nuron features like battery life indication and asset tracking, so you always know how much juice you have left and you can keep tabs on the tool in a larger fleet setup. The LED indicator tells you what mode you're in and what the battery is doing without any guesswork.
Tripod Ready

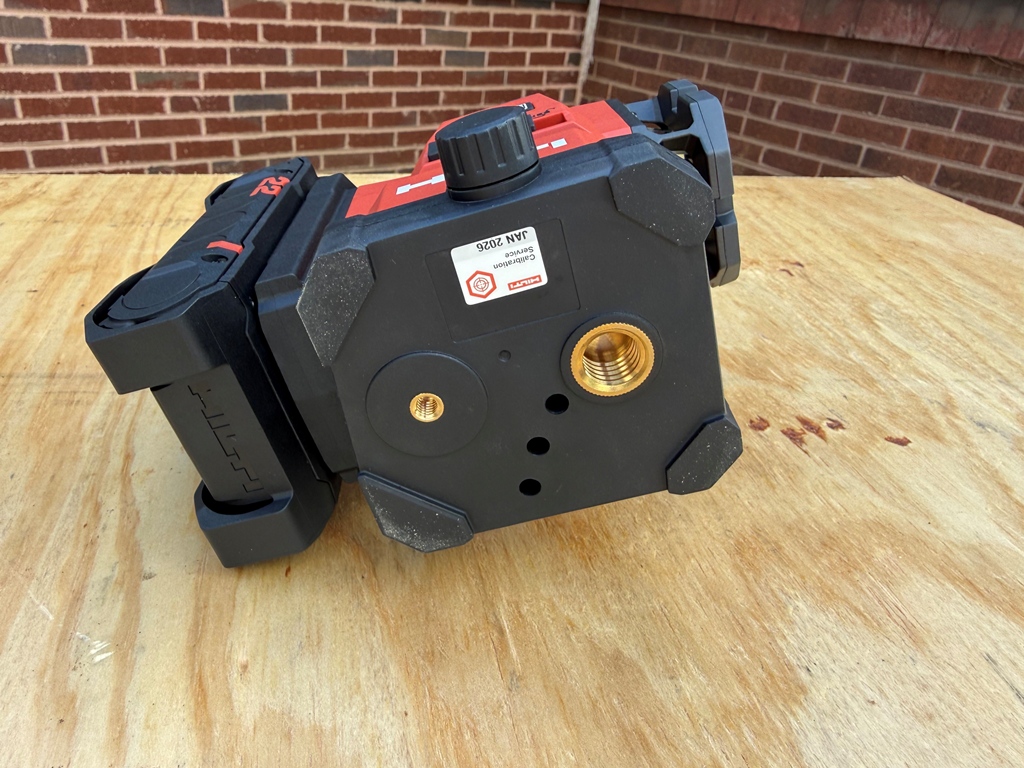

The bottom of the PM 50MG-22 has two tripod fitting options built in, which is a detail that matters more than people think. Not every tripod uses the same thread size, and having both options means you're not scrambling to find an adapter when you're on a job site. You just flip it over, find the fitting that matches your tripod, and you're set up in seconds.
The PMA 20 Tripod

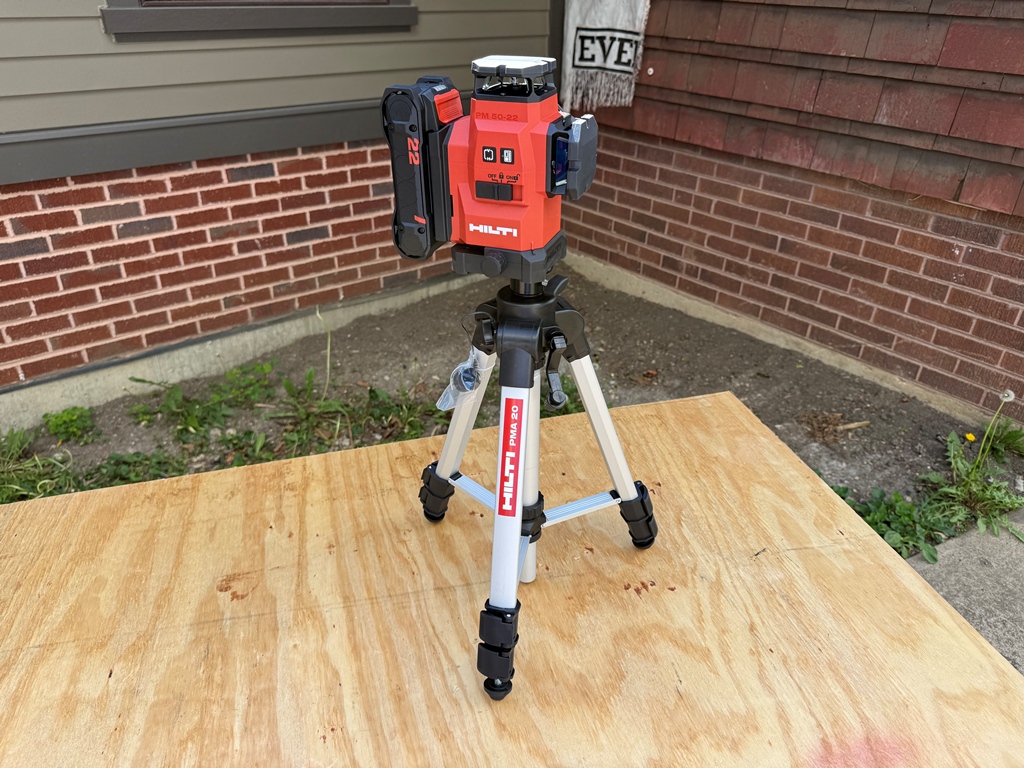

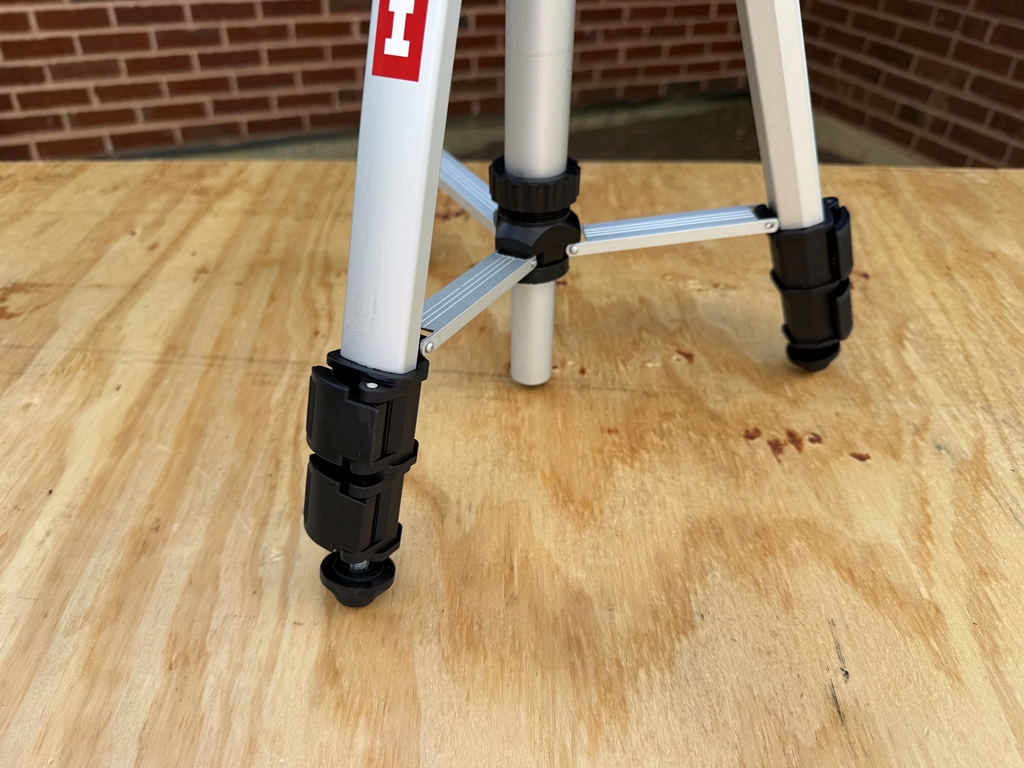

The PMA 20 tripod that pairs with the PM 50MG-22 is a solid accessory. It's stable, it adjusts smoothly, and it holds the laser at whatever height you need without any wobble. Getting the laser on and off is quick and easy, and the whole thing packs down small enough to throw in a bag without taking up a lot of space.
In Action

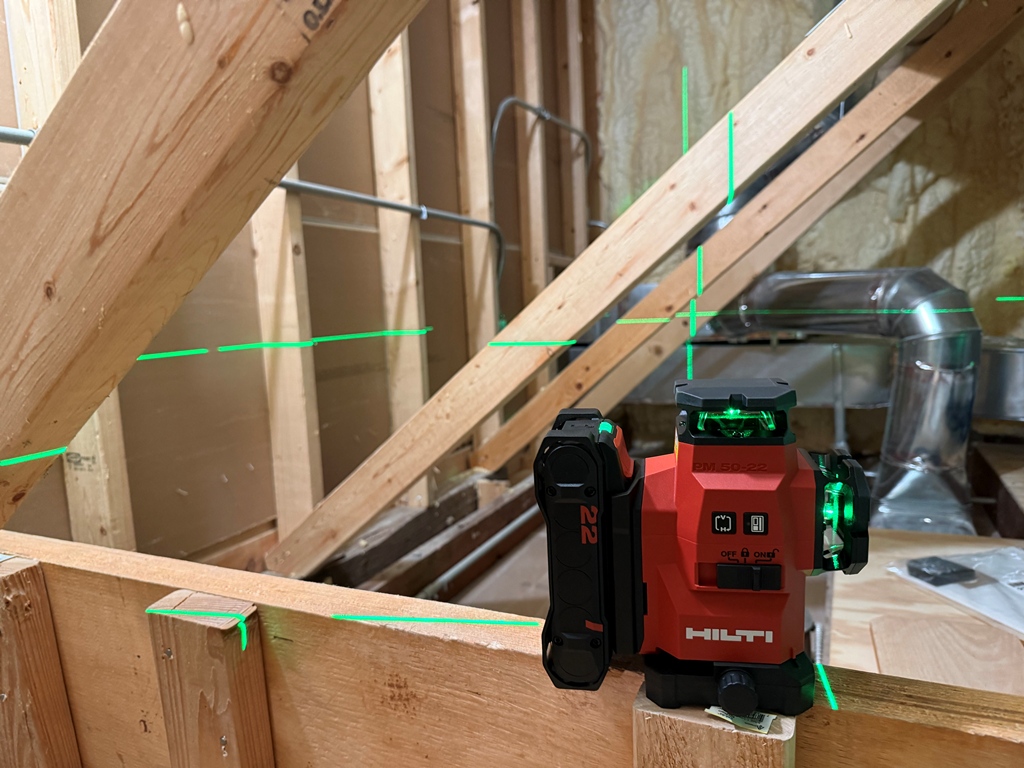

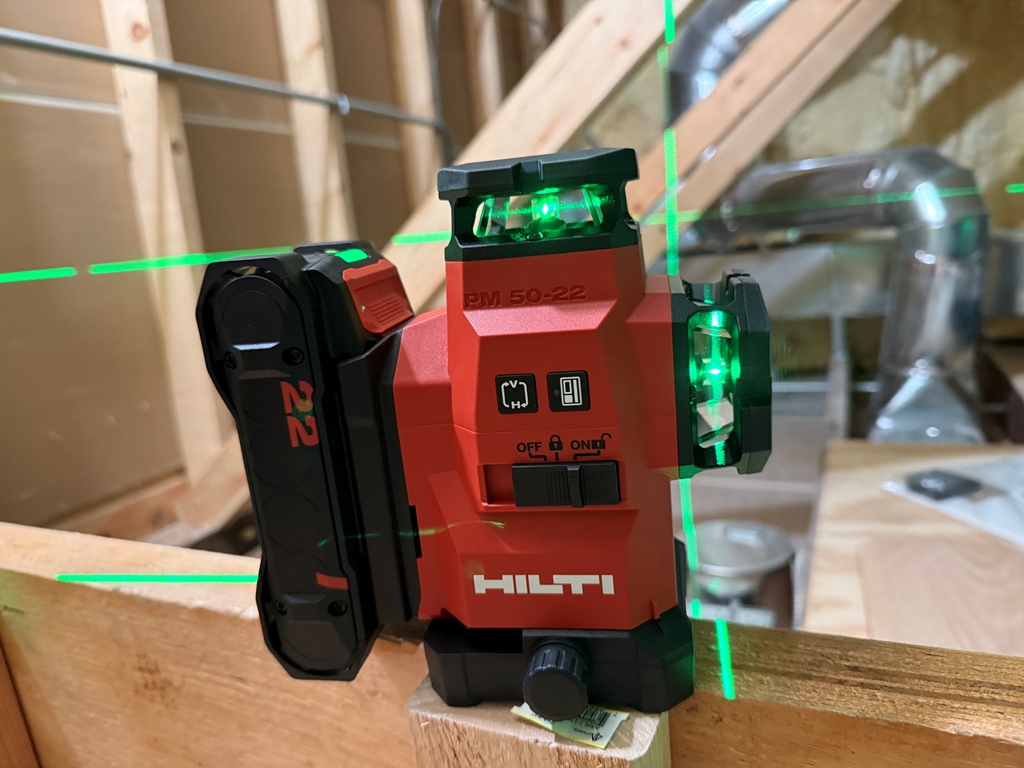

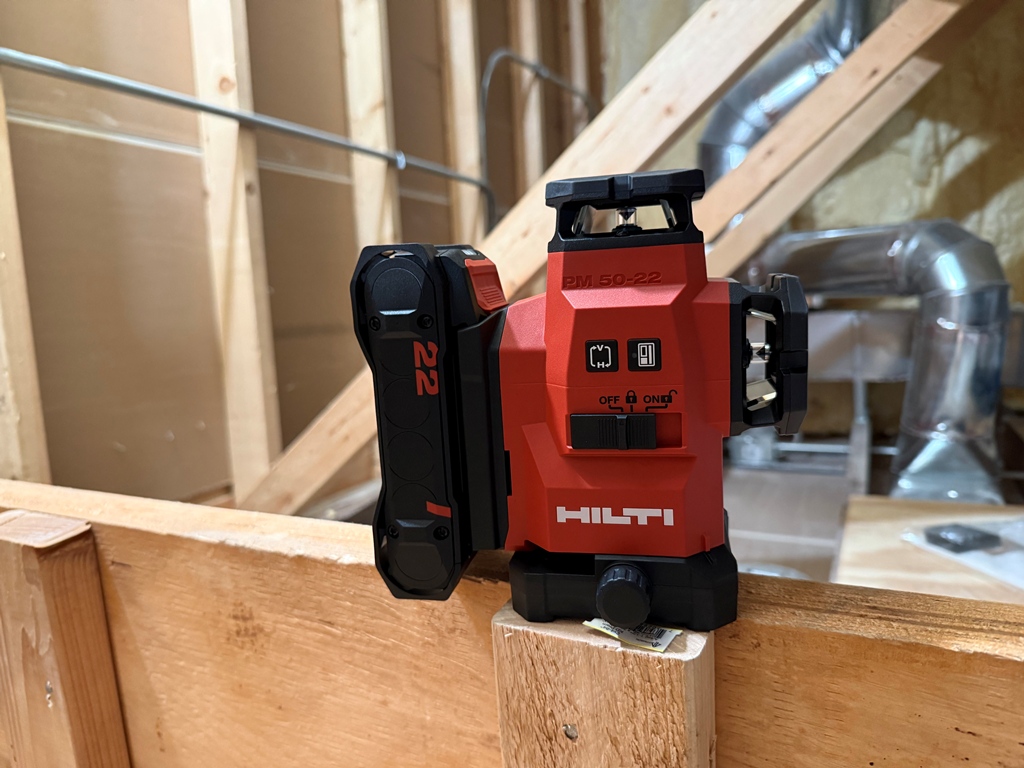

I took the PM 50MG-22 up into an attic to put it through its paces in a real working environment and it performed exactly the way you'd want it to. Attics are not easy environments for a laser. The lighting is weird, the space is tight, and you're usually working in positions that aren't ideal. The PM 50MG-22 handled all of it without any issues. The lines were easy to read, it leveled quickly after I set it down, and I never had a moment where I was questioning whether I was reading it correctly.
FAQ
Bosch makes a great laser, I'm not going to take that away from them. But the PM 50MG-22 is a step above in my opinion. The lines are brighter, the self leveling is faster, and the build quality just feels more substantial. If you've been a Bosch guy for years you'll notice the difference immediately.
Yes. Especially indoors. Your eyes pick up green light way easier than red, so the lines just pop more. In a bright environment or over longer distances the difference is significant. Once you use a good green laser it's hard to go back.
The rubber dampers on the housing help absorb impact and the IP54 rating means it can handle dust and some moisture. It's not indestructible but it's built tougher than most lasers in this category.
Final Thoughts
I'll wrap this up the same way I started it. I tried to find something wrong with the PM 50MG-22 and I just couldn't get there. The lines are sharp and bright, it levels in seconds, the battery lasts forever, and it feels like something built to actually survive a job site. Not just look good in a product photo.
If you're doing any kind of layout work, drywall, suspended ceilings, plumbing, electrical, whatever it is, you need a good laser. And if you're going to spend the money on a good laser, this is where I'd put it. Pair it with the PMA 20 tripod and you've got a setup that covers just about anything you'd throw at it.
